Xavier's Rail Bench 5/11/2021 ***Patent Pending***
Isometric drawing of my "Rail Bench" patent pending
isometric drawing (3/4 view) of my "Rail Bench", patent pending
Drawing of the Rail Bench mechanism ***Patent Pending***
Physical Prototype of Wheelchair Tire Scrubber
Openface side view of Tire Scrubber
Wheel Chair Tire Scrubber
Electric Mountain Bike, 2021.
Xavier's Final Fold out desk. This desk can hold my weight and I'm about 225 pounds!!
Light Up Pendulum Wave Machine by Xavier Simonelli
Xavier's Pendulum with billiard balls
© Xavier Anthony Simonelli 2017 "Nose Person Universe"
SolidWorks kayak
SolidWorks kayak orthographic
SolidWorks bent plywood
SolidWorks bent plywood orthographic
Drawings
Coffee table, 2023.
Rail Bench - spring 2021
Twin Thrones

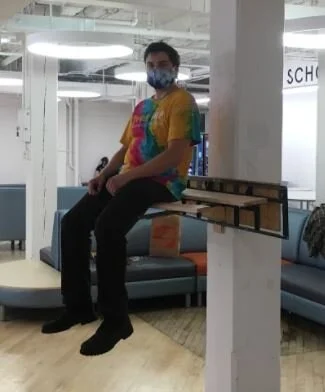

Xavier's Rail Bench 5/11/2021 ***Patent Pending***This “Rail Bench” that I designed gives people the option to be socially distant in a public space.

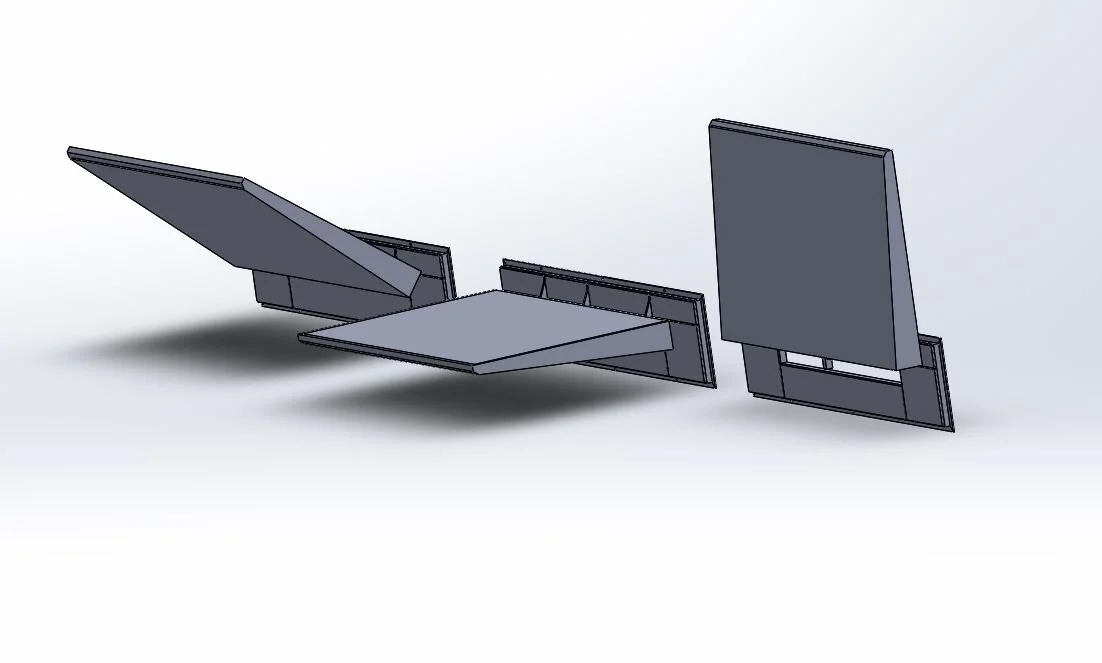

Isometric drawing of my "Rail Bench" patent pending 2021
isometric drawing (3/4 view) of my "Rail Bench", patent pending
Drawing of the Rail Bench mechanism ***Patent Pending***
Physical Prototype of Wheelchair Tire Scrubber
Openface side view of Tire Scrubber
Wheel Chair Tire Scrubber Designed for a wheelchair user to clean their tires.
Electric Mountain Bike, 2021. I helped my good friend make his vision of an e-bike come true by welding a seat post to top bar aluminum battery holder/seat.

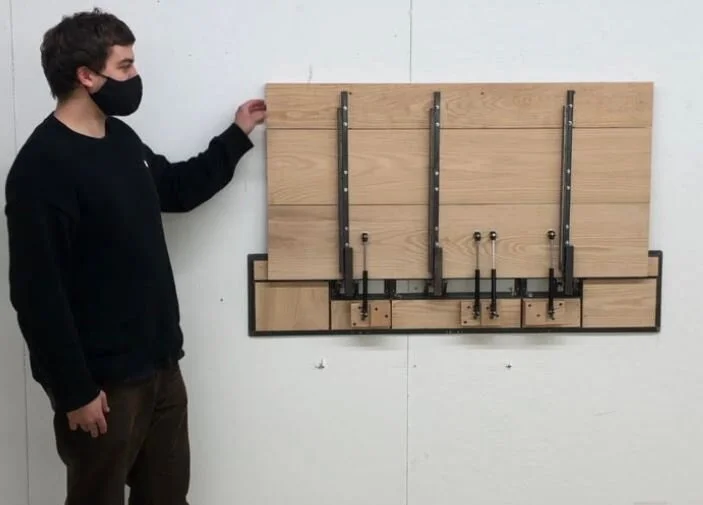

Xavier's Final Fold out desk. This desk can hold my weight and I'm about 225 pounds!!My fold out desk is mounted to the wall. It has a profile of less than 3.5 inches when folded up. When it has a soft open and close. The 2x4 foot desk top is at a slight angle. My desk has a 250 pound weight capacity.
Light Up Pendulum Wave Machine by Xavier SimonelliI made every part of this light up pendulum wave machine. I modeled the balls in solid works. The balls I designed have a bayonet flange opening and closing mechanism to hold LED lights powered balls. Then I made silicon molds and used pourable plastic to make colored casts. The metal frame was also fabricated by me.
Xavier's Pendulum with billiard ballsThis is the same frame as my Light-Up Pendulum Wave machine. Here we see that instead of my light up balls, I used billiard balls.
© Xavier Anthony Simonelli 2017 "Nose Person Universe"
SolidWorks kayak
SolidWorks kayak orthographic
SolidWorks bent plywood
SolidWorks bent plywood orthographic
Drawings Drawings
Coffee table, 2023. red oak, amazon table legs, aluminum, bronze screws
Rail Bench - spring 2021

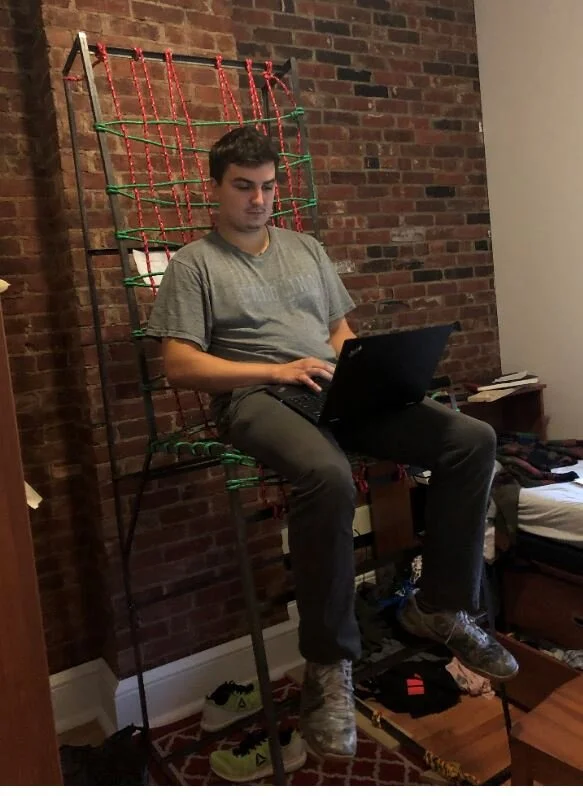

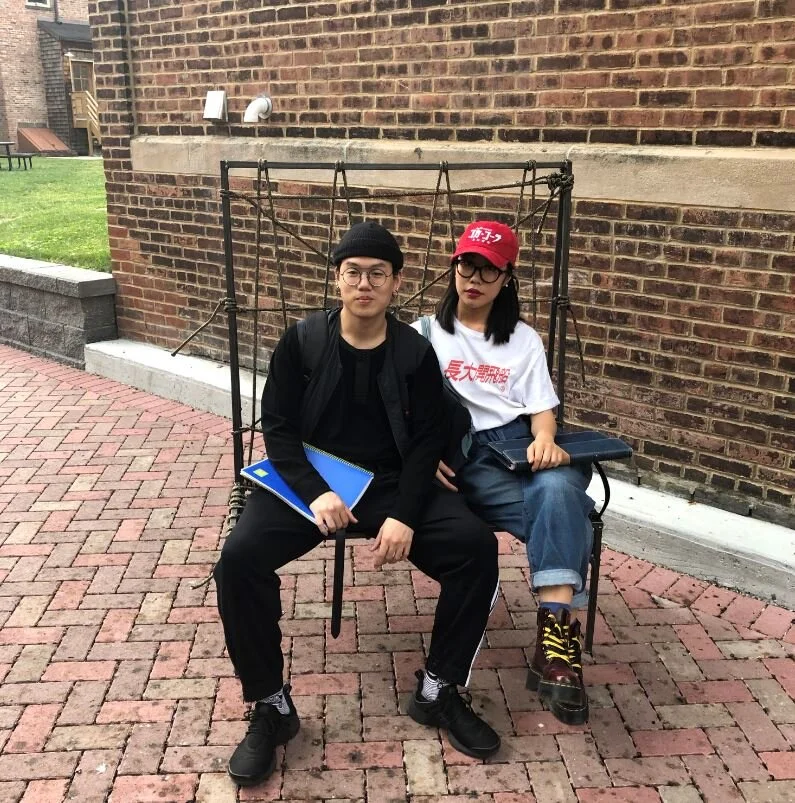

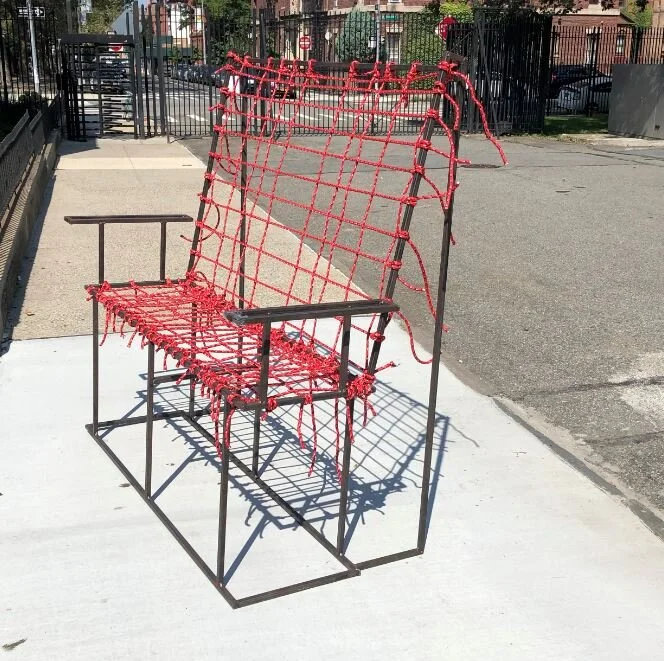

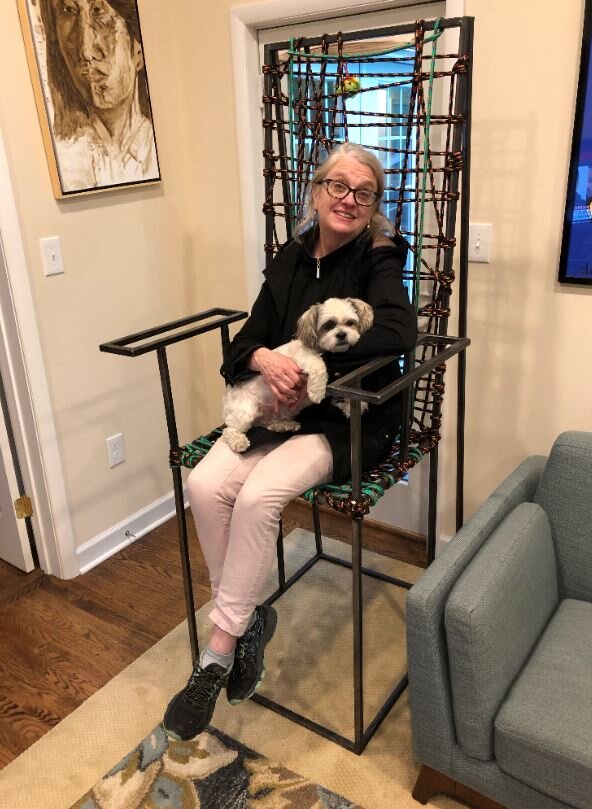

Twin Thrones
